Turbocharger Exhaust Containment

Enhancing Turbocharger Safety: A Guide to Exhaust Containment Devices

In the high-performance world of turbocharged engines, safety is paramount. Ensuring that the turbocharger operates at its best while keeping potential hazards at bay requires careful consideration of exhaust containment devices. Let’s delve into the key components and practices that contribute to a safer and more efficient turbocharging system.

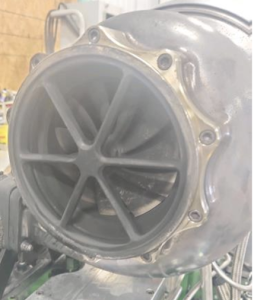

A) Exhaust Wheel Cage:

Crafted from resilient stainless steel, the exhaust wheel cage serves as a crucial component, securely bolted or fastened onto the exhaust housing according to the manufacturer’s specifications. A minimum of 8 – 5/16 bolts are mandated to ensure the cage is firmly in place, aligning precisely with the turbo manufacturer’s design.

B) Reinforced Exhaust Housing:

The exhaust housing is fortified to accommodate 2 – ½ inch bolts strategically positioned at 90-degree intervals. Welded or securely fastened, these bolts provide additional stability and reliability to the turbocharging system.

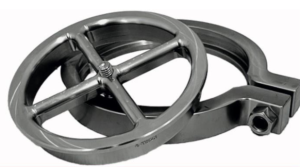

C) Turbine Containment Ring:

Designed by industry leader Apex Diesel, the turbine containment ring adds an extra layer of protection, enhancing the safety profile of the turbocharger assembly. Precision engineering and quality materials ensure optimal performance and durability.

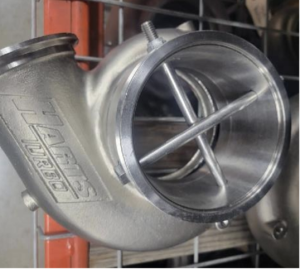

D) Fabricated Exhaust Adapter:

The exhaust adapter is meticulously crafted using two interlocking pieces of .250-inch x 1.000-inch flat steel, notched at .250-inch x .500-inch at the center to form a single interlocking assembly. Welded into a cross pattern, the adapter boasts a leading edge sharpened to a maximum of .250-inch back from the exhaust wheel, maintaining a minimum width of 1 inch. Secured to the turbo exhaust housing flange with a clamp provided by the adapter manufacturer, this device ensures a seamless connection between the exhaust pipe and the containment system.

As part of the installation process, it’s imperative to submit containment device submissions to richwine@propulling.com for thorough evaluation and compliance verification.

Ensuring turbocharger safety goes beyond mere functionality; it’s about safeguarding both equipment and personnel against potential hazards. By adhering to meticulous design standards and utilizing top-quality components, turbocharger systems can operate at peak performance levels while minimizing risks. Prioritizing safety not only enhances the longevity of the equipment but also fosters a culture of responsibility within the high-performance automotive community.
